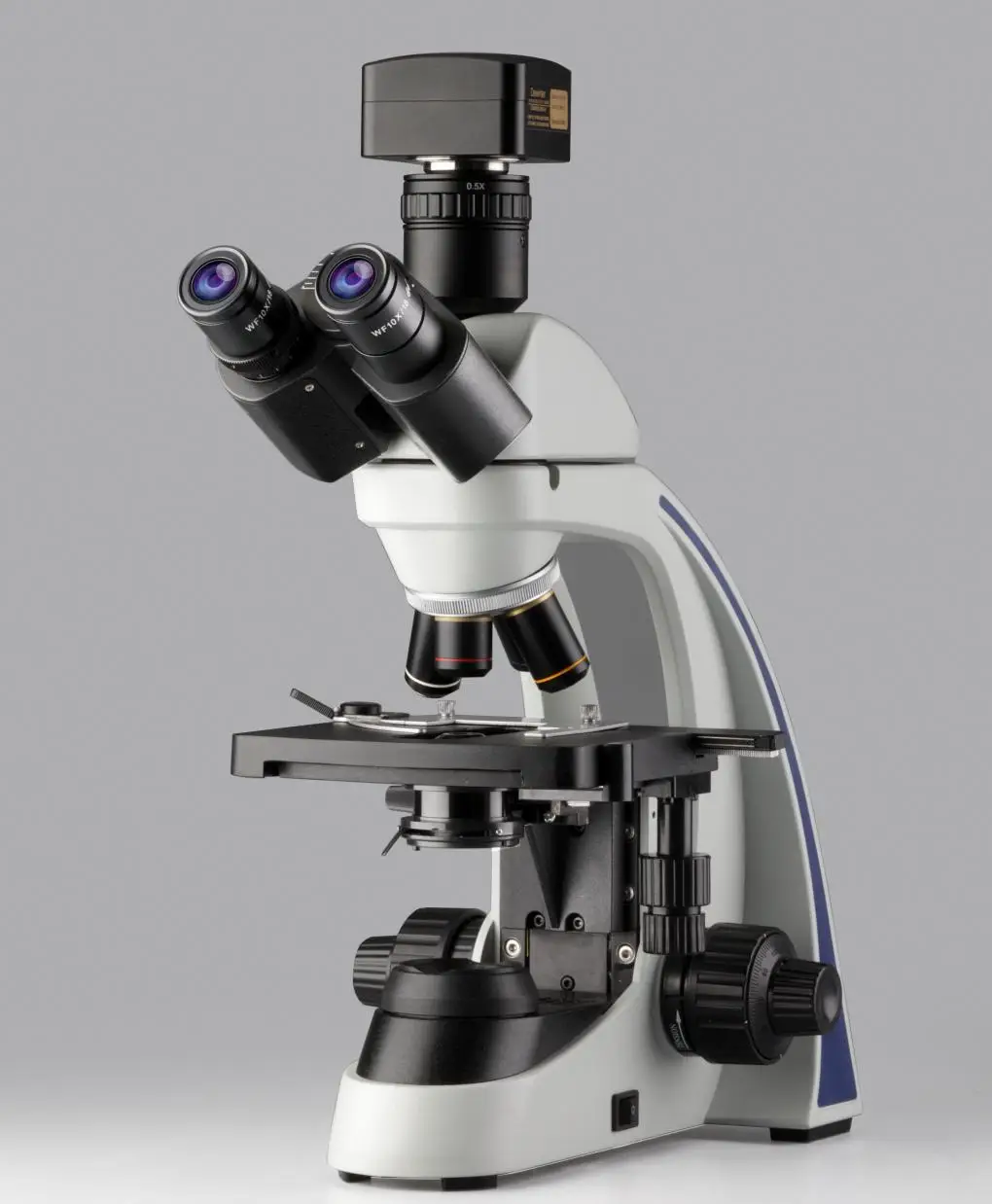

A compact size, easy operation, superior optical performance designed to handle high specimen throughput and hours of continuous use has made Nuverto Primax an outstanding choice.
The standard model is equipped with Siedentop observation head incline at 300, a large double plate stage, flat field S-Plan objectives, inward nosepiece, metal interchangeable anti-mold parts, anti-fungus treated objectives, eyepieces and observation tube.
Primax Pro comes loaded with infinity plan objectives, phase contrast, controlled heating stage, quintuple nosepiece and W.F. paired eyepieces F.O.V 20 mm, making it ideal for Bovine Semen analysis under dark field.
| Primax | Primax Pro | |
| Trinocular Observation Head | Siedentopf Observation head inclined at 30o, rotatable at 3600, Diopter adjustment (± 5), IP distance 55-75mm, Binocular/Trinocular | Siedentopf Observation head inclined at 30o, rotatable at 3600, Diopter adjustment (± 5), IP distance 55-75mm, Trilocular |
| Eyepiece | Anti Fungus coated, Wide Field 10x 9paired) F.O.V 18 mm | Anti Fungus coated, Wide Field 10x 9paired) F.O.V 20 mm |
| Objectives | Anti Fungus coated, S-Plan Achromatic 4X,10X,40X (S.L),100X Oil (S.L) | Anti fugus coated, IOS Plan Achromatic 4X,10X,40X (S.L),100X Oil (S.L) |
| Mechanical Body | Co-Axial focusing system. Pre-focusing Lever & Tension adjustment ring, Quadruple nosepiece revolving, Double plate mechanical stage 140 mm x 155mm | Co-Axial focusing system. Pre-focusing Lever & Tension adjustment ring, Quintuple nosepiece revolving,Double plate mechanical stage 140 mm x 155mm |
| Warm Stage | - | Controlled heating stage (optional) |
| Sub Stage condenser | Abbe Condenser N.A. 1.25 adjustable iris diaphragm | Abbe Condenser N.A. 1.25 adjustable iris diaphragm |
| Illumination System | Brightness control knob; built-in illumination system,3W LED | Brightness control knob; built-in illumination system,3W LED |
| Standard Accessories | Dust cover, operating manual, guarantee card, blue filter and Styrofoam molded pack | Dust cover, operating manual, guarantee card, blue filter and Styrofoam molded pack |
