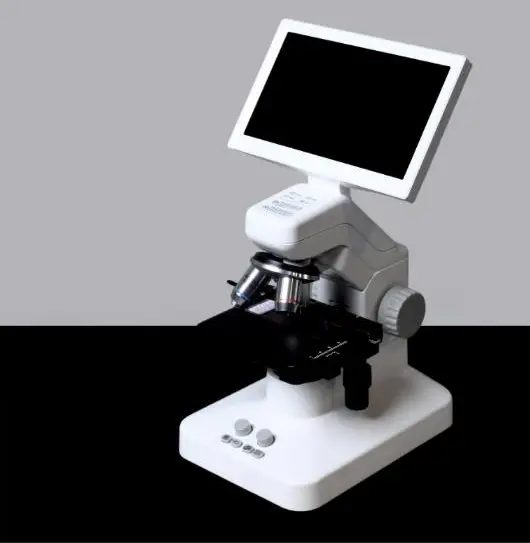

The Digi Mini is an advanced fully functional, complete yet portable microscope customized for Artificial Insemination professionals for bovine frozen semen analysis for PTM (post thaw motility) under field circumstances and for help in microscopic field evaluation of blood samples, smear, skin, urine and fecal samples.
| Magnification | • Digital Zoom: 2x Display |
| Eyepiece (Anti fungus) | • Screen: 7" IPS LCD • Resolution: 1024 x 600 • Adjustable Angle: 120° |
| Camera & Sensor | • Camera Type: CMOS 2.0MP • Photo Resolution: Up to 8.0MP • Video Resolution: 1920 x 1080p (Full HD) • Sensor Size: 1/2.9" CMOS • Pixel Size: 2.8 x 2.8 μm |
| Optics | • Nosepiece: 3-hole • Objectives: Achromatic High Contrast-10x, 20x, 100x |
| Stage | • Type: Double-layer mechanical stage • Size: 95 x 105 mm • Movement Range: 20 x 50 mm |
| Illumination | • Light Source: Upper & bottom LED • Brightness: Adjustable |
| Focusing | • Type: Coarse focusing knob • Focusing Range: 8 mm |
| Output & Connectivity | • HDMI Output: 1080p to TV • USB Output: USB 2.0 to PC (Windows 10/11) • Wireless: Wi-Fi connection to Android/iOS device |
| Controls | • On-Stand Buttons • Photo/Video/Album/Menu • Light switch • Wi-Fi switch |
| Power Supply | • Adapter: DC 5V 2A (Type-C cable) • Battery: Rechargeable • Eco Mode: Auto power-off (1, 3, 5, 10 minutes, etc.) |
| Measurement Tools | • Built-in measuring scale for 4x, 10x, and 40x objectives |
| Additional Features | • Product Size: 31 x 19 x 18 cm • Package: Portable bag with handle • Dimensions: 20 x 23 x 27 cm • Weight: 2 kg |
